IPA SERIES POWER AMPLIFIERS
The IPA Series is an 4th generation high performance PWM switching (Class-D) power amplifier designed for continuous operation with any shaker system in the vibration testing industry. The IPA (Intelligent Power Amplifier) series amplifier have incorporated many new features and designs. The IPA amplifier uses a large touch screen user interface and the latest FPGA with DSP technology which is designed to drive and monitor its IGBT power modules output. A complete new design concept is taken to built-in a dedicated FPGA-PWM controller into each power module. The high-speed FPGA-PWM controller handles a closed loop digital signal processed pulse width modulation driving circuit to the IGBT FETs. An error control logic in the FPGA-PWM controller handles low output distortion with fast overcurrent and short-circuit protection on the IGBT FETs. The FPGD-PWM controller incorporates a synchronous phase logic control to ensure all power modules operates in phase and its output current are balanced. The touchscreen control provides clear and easy interface on the amplifier control and monitoring. It is also capable of remote control and monitoring function via the internet. This makes the IPA series amplifier the most user friendly, reliable and high performance switching amplifier for shaker system in the market. The amplifier outputs range from 30 kVA to 1,200 kVA.

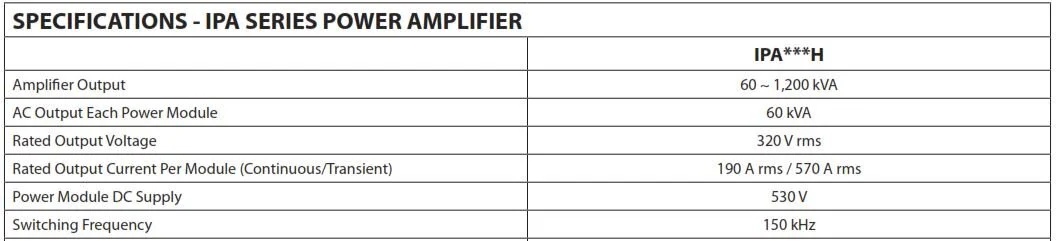

PERFORMANCE
New design with High Speed IGBT technology
Compact sized power module with large output (60 kVA each)
High conversion efficiency (greater than 90%) for energy saving
High modulation switching frequency (150 kHz)
High signal to noise ratio (greater than 70 dB)
Parallel power module operating output current differential current less than 2%
Dynamic fault current error control protection
Intelligent PLC control and monitoring system
Interactive diagnostic “System Status” on touch screen
Complete digital control (digital gain and monitoring)
SAFETY AND RELIABILITY
Soft start and soft stop circuits
Detailed scope of system interlock protections
Totally air cooled amplifier designed for continuous and safe thermal operation
All-encompassing fuse protection for high current system components
Interchangeable compact size designs
Easy maintenance and rapid servicing
Internet port available for data exchange between amplifier and other equipment
Remote control and monitoring available via internet port
Compatible with all vibration controllers
Worldwide service spare parts support
POWER MODULE
DSP/FPGA fully digital PWM control and current protection
High current output capacity per module
Constant current output and dynamics current sharing capability
Ultra fast PWM logic control for high reliable performance
Robust design to protect the fuses and FETs even in the events of transient over-current or short circuit
LOGIC CONTROL UNIT
Interactive Touch Screen interface
Fully digital gain with precise sensitivity (1%)
Multiple languages to choose
Various extension functions available
Internet port available for data exchange and remote monitoring
