Modular Telemetry for Rotating Shafts

Digital multi-channel systems enable conditioning, digitization and wireless transmission of up to 64 parallel signals

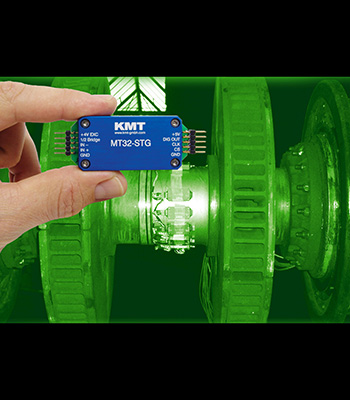

MT32 Application

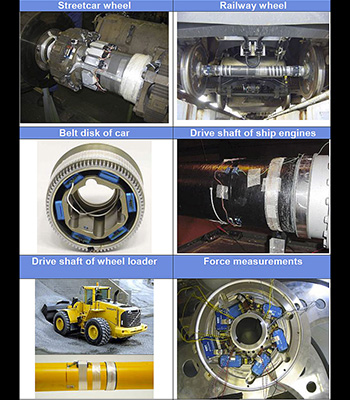

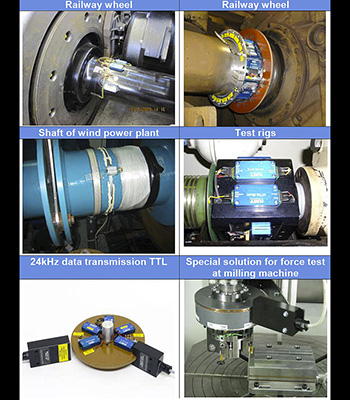

Modular telemetry systems in various designs and functions are used for non-contact measurement and transmission of torque, acceleration and temperature on rotating shafts.

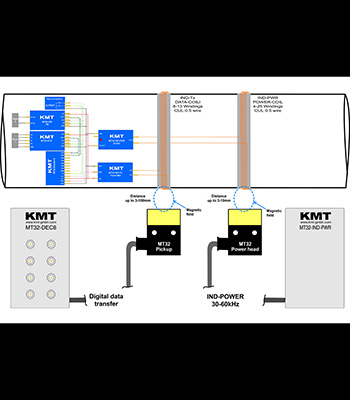

The digital multi-channel systems MT32 or MTP enable conditioning, digitization and wireless transmission of up to 64 parallel signals. Each sensor module is equipped with signal conditioning, anti-aliasing filters, A/D-converters and digital output. Up to 32 modules (MT32 with 1-CH-modules and MTP with 2-CH-modules) which will be controlled by an encoder/controller module. The encoder output is a fast PCM bit stream signal which can be transferred either inductively for small distances or modulated for RF transmission over distances of up to 100 m and data transfer rates of up to 5000 kbit/s.


MT32 Telemetry (12bit)

Modular multi-channel telemetry for rotating, mobile and stationary applications; each sensor module is equipped with signal conditioning, anti-aliasing filter, analog-to-digital converter and a digital output; up to 32 modules can be controlled by one encoder… Contact us for more info

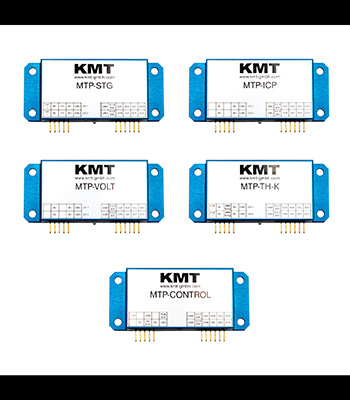

MTP Telemetry (16bit)

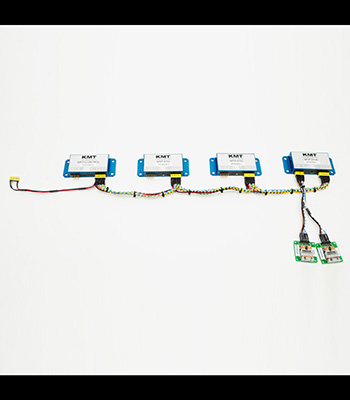

The MTP telemetry is a small and flexible telemetry system for rotating applications. Each sensor module (2-channel) is equipped with signal conditioning, anti-aliasing filter, analog-to-digital converter and a digital output. Up to 32 modules can be controlled… Contact us for more info
