Climatic Testing

ETS Solutions manufactures a wide range of environmental testing chambers including temperature & humidity chamber, thermal shock chamber, high temperature and temperature & altitude chamber. All systems comply with internationals standards such as MIL, IEC, ISO etc



Climatic Test Chamber

The T (H) Series climatic test chamber features a low controlled humidity performance with a choice of different temperature range and test space to meet your test requirements at the right budget.

Test Space Volume
200L, 400L and 1000L
(7.1, 14.1 and 35.3 ft3)

Temperature Range
-20℃ to +150℃
-40℃ to +150℃
-70℃ to +150℃

Humidity Range
(10-98)%RH

Features
•Compact chamber size saving valuable floor space
•Intelligent refrigeration control system
•Low noise
•Enhanced temperature and humidity performance
•High brightness LED light with long useful life
•Bilateral cable ports available
•Environmentally friendly refrigerant
•Multi sub system unit over-temperature protection
•DUT power supply control terminal
•RS-485/Ethernet centralized monitoring (optional)
•GPIB interface (optional)

Climatic Test Chamber

The TH-K Series climatic test chamber is economical selection that offers standard performance with a choice of different temperature range and test space.

Test Space Volume
200L, 400L and 1000L
(7.1, 14.1 and 35.3 ft3)

Temperature Range
-20℃ to +150℃
-40℃ to +150℃
-70℃ to +150℃

Humidity Range
(25-98)%RH

Features
•Multi sub system unit over-temperature protection
•5.7-inch TFT colour touch screen program controller
•Excellent performance meeting international test standards
•Energy-efficient refrigeration with exclusive electronic expansion valve system
•Enhanced performance temperature fluctuations
•Enhanced temperature change rates
•Easy maintenance and rapid servicing
•Environmentally friendly refrigerant
•RS-485/Ethernet centralized monitoring (optional)
•GPIB interface (optional)

Climatic Test Chamber

The TH-K3 Series climatic test chamber is economical selection that offers standard performance with a choice of different temperature range and test space.

Test Space Volume
400L and 1000L
(14.1 and 35.3 ft3)

Temperature Range
-70℃ to +150℃

Humidity Range
(10-98)%RH

Features
•Multi sub system unit over-temperature protection
•5.7-inch TFT colour LCD Display
•Excellent performance meeting international test standards
•Energy-efficient refrigeration with exclusive electronic expansion valve system
•Enhanced performance temperature fluctuations
•Enhanced temperature change rates
•Easy maintenance and rapid servicing
•Environmentally friendly refrigerant
•RS232/RS485/Ethernet centralized monitoring (optional)
•GPIB interface (optional)

Compact Ultra Low Temperature Chamber

The T-U Series chamber embodies the high performance, reliability and durability of a full-size chamber. Despite the compact size, it can achieve the ultra-low temperatures of -70°C as well.

Test Space Volume
60L (2.1 ft3)

Temperature Range
-70℃ to +150℃

Features
•Stable and reliable compact design
•Automatic refrigeration switching for efficient operation
•Stainless steel interior
•Two stainless steel shelves
•5.7-inch TFT color touch screen program controller
•Multi sub system unit over-temperature protection
•Specimen power supply control terminal
•One standard 50mm diameter cable port
•Running hour meter
•RS-485/Ethernet centralized monitoring (optional)
•GPIB interface (optional)
•Environmentally friendly refrigerant

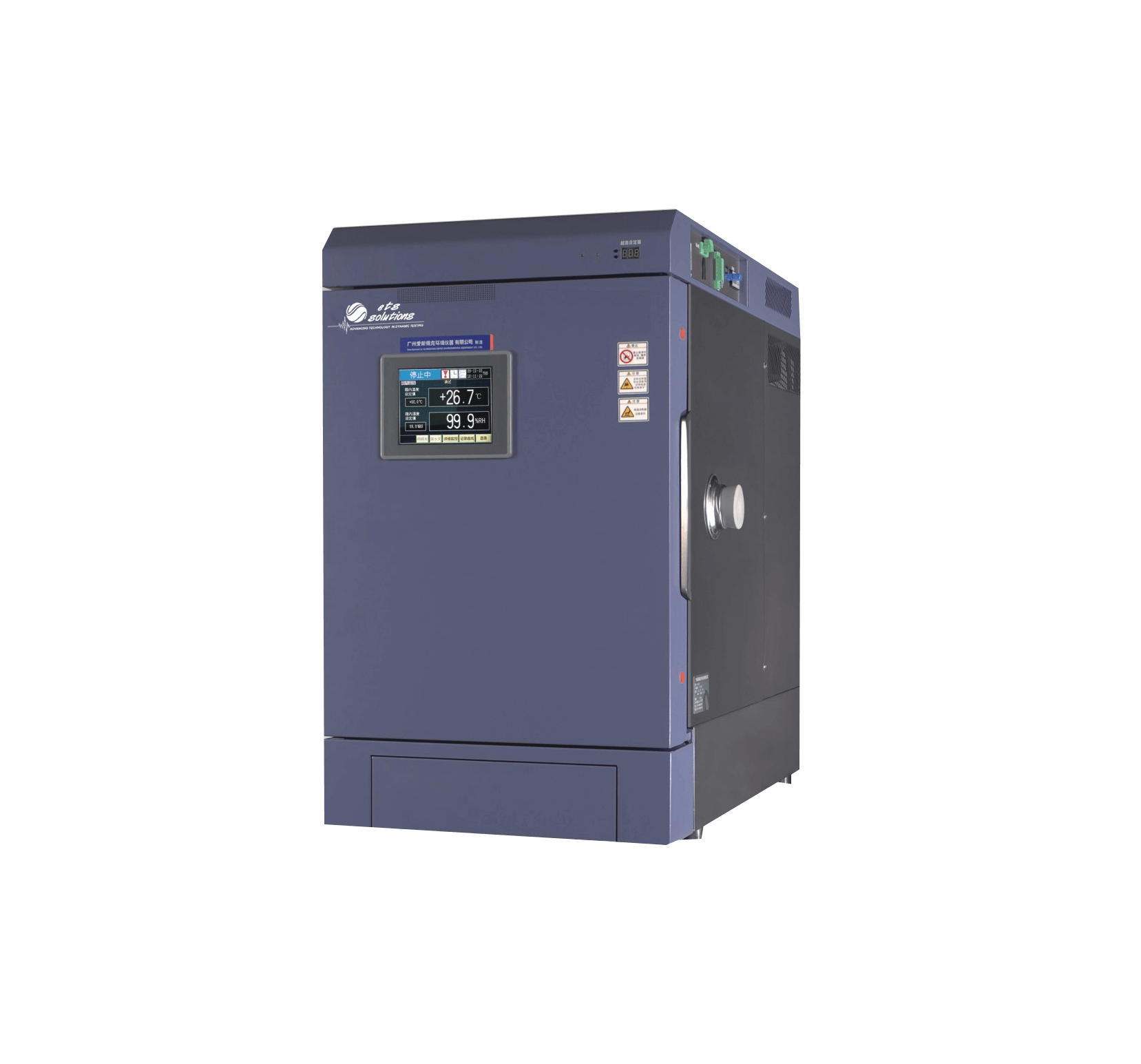

Bench Top Climatic Test Chamber

T(H)-B Series chambers provide the development engineer and quality assurance specialist high efficiency in a limited space. With a variety of optional accessories, they can be configured to accommodate your specific requirements.

Test Space Volume
30L (1.1 ft3)

Temperature Range:
-65℃ to +150℃

Humidity Range
(25-98)%RH

Features
•Energy-saving, low noise
•Refrigeration circuit intelligent control,
•Multi sub system unit over-temperature protection
•Specimen power supply control terminal
•High brightness LED lighting with long useful life
•Around bilateral lead hole
•5.7-inch TFT colour touch screen program controller
•One 50 mm diameter cable port on the right and left side
•RS-485 centralized monitoring (optional)
•Environmentally friendly refrigerant

High Change Rate Climatic Test Chamber

T(H)-R Series chambers provide the development engineer and quality assurance specialist high efficiency in Rapid Temperature Change up to 15℃/min.

Test Space Volume
200L, 504L, 1000L and 2400L
(7.1, 17.6, 35.3 and 84.8 ft3)

Temperature Range
-70℃ to +150℃

Humidity Range
(25-98)%RH

Features
•High load capacity
•Lower sound levels, even for air-cooled models
•High brightness LED lighting with long useful life
•Bilateral cable ports available
•Multiple independent over-temperature protection
•Specimen power supply control terminal
•Refrigeration gauges and hinged service panels for easy maintenance
•5.7-inch TFT colour touch screen program controller
•RS-485/Ethernet centralized monitoring
•Remote fault diagnosis
•Environmentally friendly refrigerant
•Temperature cycling as fast as 15°C per minute

High Temperature Test Chamber

HT Series
Test Space Volume
91L, 216L, 512L and 1000L
(3.2, 7.6, 18.1 and 35.3 ft3)

Temperature Range
20℃ to +200℃
20℃ to +300℃

Feature
•Stainless steel interior
•Smaller footprint
•Large LED display panel, intuitive display and easy to operate
•3 editable programs, each with 30 steps
•Damper adjustment function
•E-BUS/RS-485 centralized monitoring (optional)
•Multi sub system unit over-temperature protection
•Specimen power supply control table
•Standard Controller and blower located on right side of chamber

Temperature Test Chamber with Turn-Table

The T-RS Series chambers provide the development engineer and quality assurance specialist high efficiency in Rapid Temperature Change up to 15℃/min and the Turn table feature.

Test Space Volume
250L, 1000L and 2400L
(8.8, 35.3 and 84.8 ft3)

Temperature Range
-70℃ to +150℃

Feature
•High load capacity
•Turn table
•Lower sound levels, even for air-cooled models
•High brightness LED lighting with long useful life
•Bilateral cables ports available
•Multiple independent over-temperature protection
•Specimen power supply control terminal
•Refrigeration gauges and hinged service panels for easy maintenance
•5.7-inch TFT colour touch screen program controller
•RS-485/Ethernet centralized monitoring
•Remote fault diagnosis
•Environmentally friendly refrigerant
•Temperature cycling as fast as 15℃ per minute

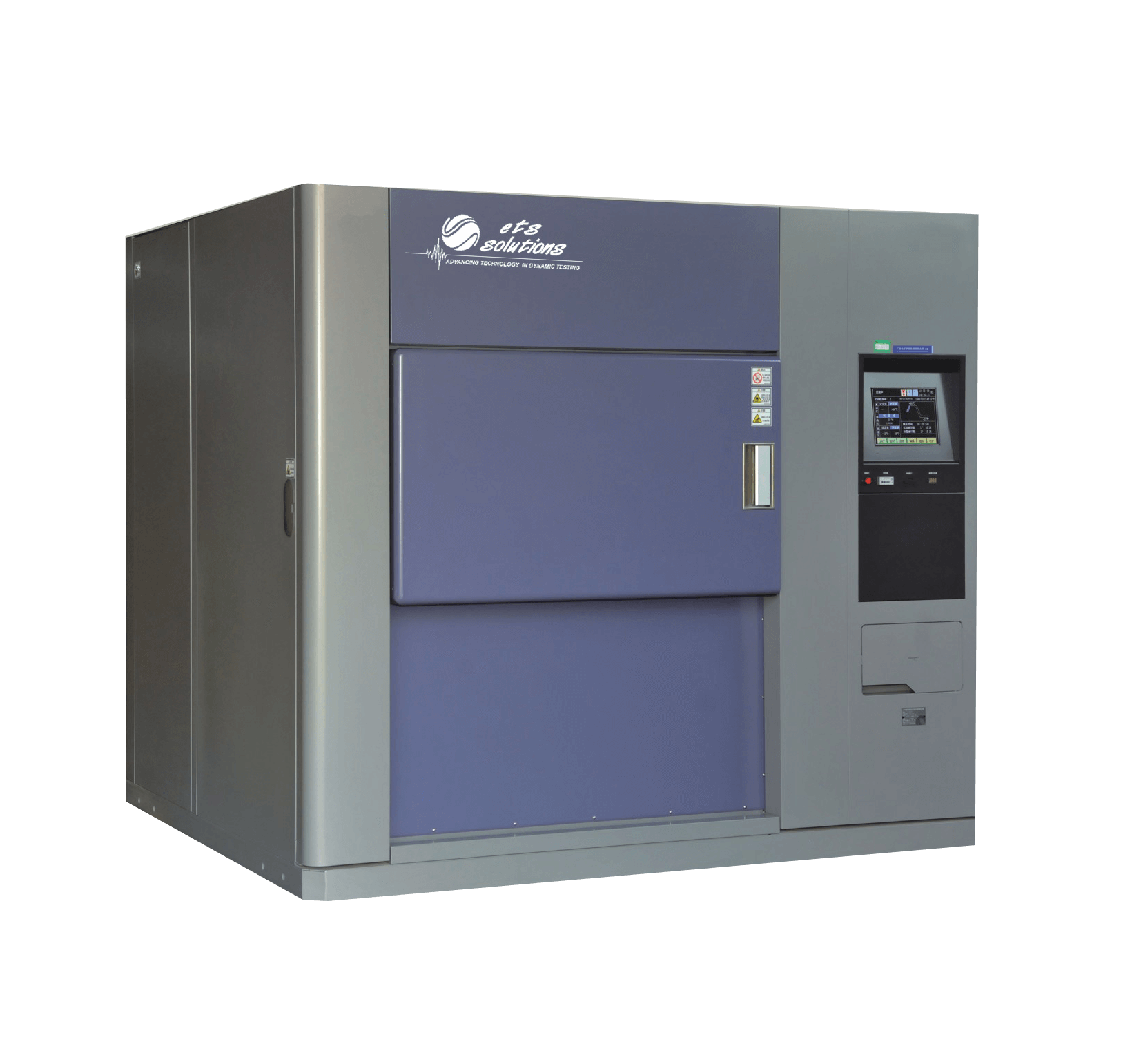

Thermal Shock Test Chamber

TS series features a choice of either two or three zones thermal shock test chamber. It circulates cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the set-point, allowing quicker recovery of the desired condition after transfer.

High Temperature Exposure Range
+60℃ to +200℃

Low Temperature Exposure Range
-70℃ to 0℃ Or
-65℃to 0℃

Features
•Damper control, thermal shock without moving test samples
•10.4-inch TFT colour touch screen program controller
•Multiple independent over temperature protection
•Specimen power supply control terminal
•RS-485 centralized monitoring
•Environmentally friendly refrigerant
•Two-zone or three-zone capability
•Most energy efficient, up to 50% savings

Climatic Temperature & Altitude Chamber

AL(N) series altitude test chamber offer aerospace test engineers a high performance system for aerospace test simulation. With temperature range from -70℃ to 160℃ and altitude simulation of up to 45 km above sea level, the system meets most of aerospace & military test standards.

Test Space Volume
720L, 1000L and 2370L
(25.4, 35.3 and 83.7 ft3)

Temperature Range
-70℃ to 160℃

Pressure Range
Normal pressure to 0.5kpa (approx. 45,000 m above sea level)

Features
•5.7-inch TFT colour touch screen program controller
•Multiple independent over temperature protection
•Specimen power supply control terminal
•RS-485 centralized monitoring
•Ethernet centralized monitoring (optional)

Agree Vibration-compatible Test Chamber

T(H)-VH Series are industrial-quality chambers that can be integrated with a combination-base vibration system with vertical or horizontal positions.

Test Space Volume
613L, 1200L and 2730L
(21.6, 42.4 and 96.4 ft3)

Temperature Range
-70℃ to 150℃

Humidity Range
(25-98)% RH

Features
•Stainless steel interior
•Intelligent refrigeration control system
•Low noise
•Enhanced temperature and humidity performance
•High brightness LED light with long useful life
•Bilateral cable ports available
•Environmentally friendly refrigerant
•Multi sub system unit over-temperature protection
•DUT power supply control terminal
•RS-485/Ethernet centralized monitoring (optional)
•GBIP Interface (optional)
•Hydraulic lifting system
•Electrical horizontal movement system
•Removable floors to accommodate a vibration system

Walk-in Climatic Test Chamber

WT Series walk in test chamber offers test engineers a range of climatic simulation testing possibilities unrestricted by the test unit sizes. With the wide range of options to suit applications need for automotive, aerospace and defence testing.

Test Space Volume
3 to 50m3
(3.9 to 65.4 yd3)

Temperature Range
-65℃ to 120℃

Humidity Range
(25-98)% RH

Features
•Energy saving and low noise
•Stainless steel interior
•High load capacity
•High brightness LED lighting with long useful life
•10.4-inch TFT colour touch screen program controller
•RS-485/Ethernet centralized monitoring (optional)
•Multiple independent over-temperature protection
•Specimen power supply control terminal
•Remote fault diagnosis
•Environmentally friendly refrigerants
